1-2295018-2
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Cutout, Surface Mount, Right Angle; Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2295018-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

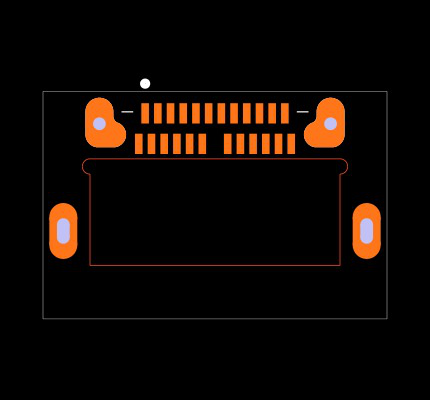

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2295018-2
| Part Name | 1-2295018-2 |
| Manufacturer | TE Connectivity |
| Pick & Place Capable | Yes |
| Shell Plating Material | Nickel |
| Centerline (Pitch) | .019 |
| USB Version | 3.1 Gen 1 |
| Circuit Application | Signal |
| USB Type | C |
| Housing Material | High Temperature Thermoplastic |
| Ground Component Type | M2 Threaded Hole |
| Contact Termination Type | Surface Mount |
| Integral Locking Latch | Without |
| Connector Style | Receptacle |
| Number of Positions | 24 |
| Locking Feature | Without |
| Mounting Location | Mid Mount |
| TE Internal Number | 1-2295018-2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Cable-to-Board |
| Housing Color | Black |
| Offset | .65 |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -30 – 85 |
| Shell Plating Finish | Bright |
| Locating Posts | Without |
| Packaging Method | Tape & Reel |
| Number of Ports | 1 |
| Contact Mating Area Plating Material | Gold over Nickel |
| Application Method | Tape |
| Orientation | Right Angle |
| Panel Ground Location | Right/Left |
| Grounding Options | Panel Ground |
| Contact Current Rating (Max) (A) | 5 |
| Contact Mating Area Plating Thickness | 30 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
We could not find inventory or pricing across major distributors for the 1-2295018-2 by TE Connectivity AMP Connectors.
