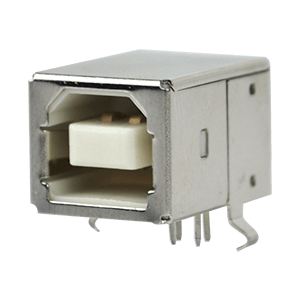

UJ2-BH-1-TH
Type B, USB 2.0, 480 Mbps, 30 Vac, 1 A, Right Angle, Through Hole, 3 µin Plating Thickness, Black Insulator, USB Receptacle
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UJ2-BH-1-TH by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UJ2-BH-1-TH
| Part Name | UJ2-BH-1-TH |
| Manufacturer | CUI Devices |
| Color Insulator | Black |
| Contact Plating Thickness | 3 µin (min) |
| Orientation | Horizontal |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/uj2-bh-1-th |
| USB Type | Type B |
| Voltage Rating (V) | 30 |
| Connector Type | Receptacle |
| Mounting Style | Through Hole |
| Input Type | Vac |
| Data Transfer Speed | 480 Mbps |
| USB Standard | USB 2.0 |
| Current Rating (A) | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
