UP31-CV-G-CM
Type C, USB 3.2 Gen 2, 10 Gbps, 20 Vdc, 5 A, Vertical, Cable Mount, USB Plug Connector
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UP31-CV-G-CM by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

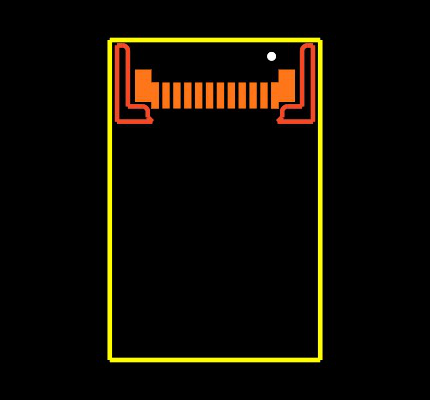

Footprint
No web preview
This Footprint is Available for

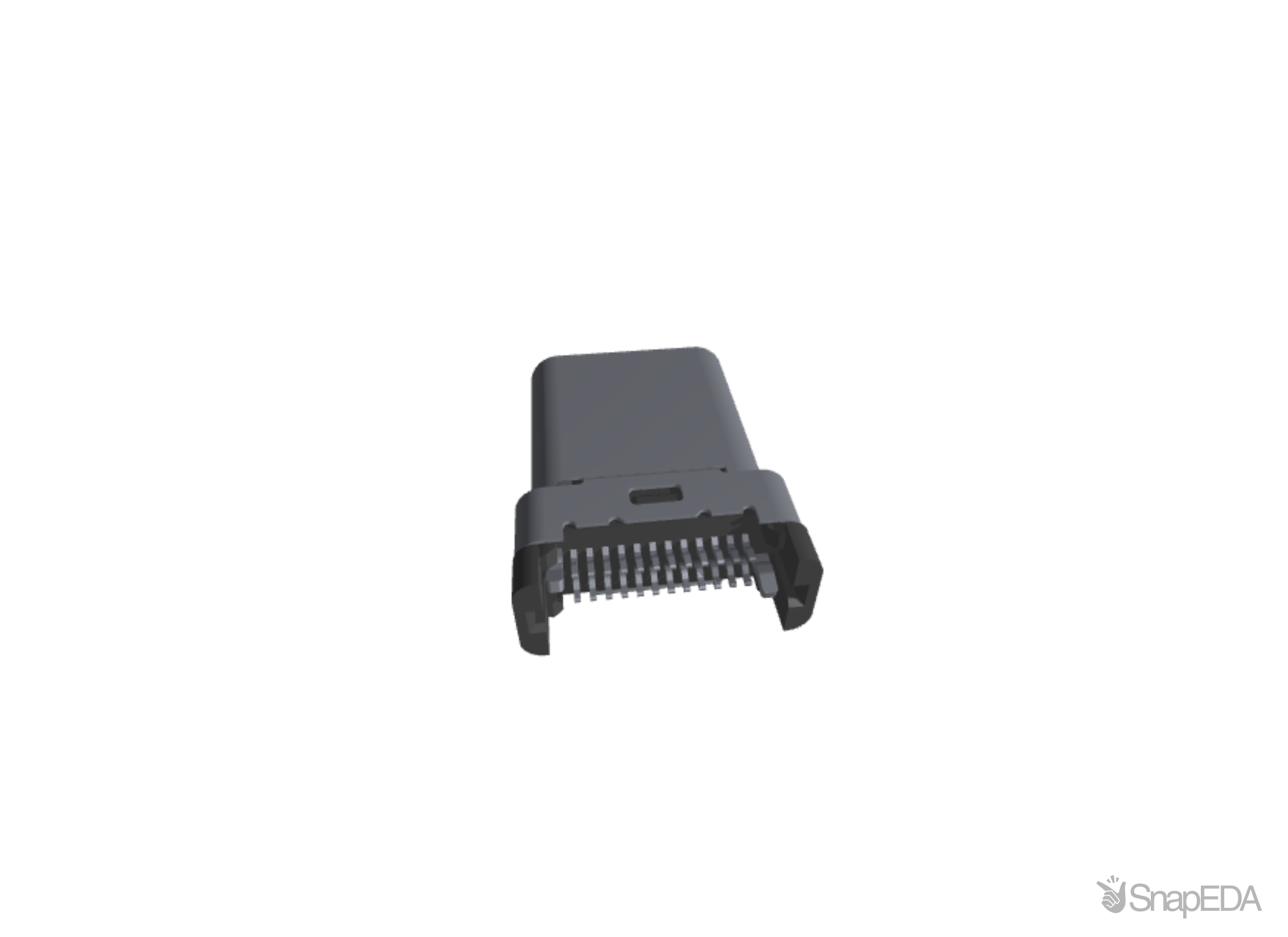

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UP31-CV-G-CM
| Part Name | UP31-CV-G-CM |
| Manufacturer | CUI Devices |
| Color Insulator | Black |
| Contact Plating Thickness | 2 µin (min) |
| Orientation | Vertical |
| Voltage Rating (V) | 20 |
| USB Type | Type C |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/up31-cv-g-cm |
| Connector Type | Plug |
| Mounting Style | Cable |
| Current Rating (A) | 5 |
| Input Type | Vdc |
| Data Transfer Speed | 10 Gbps |
| USB Standard | USB 3.2 Gen 2 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
